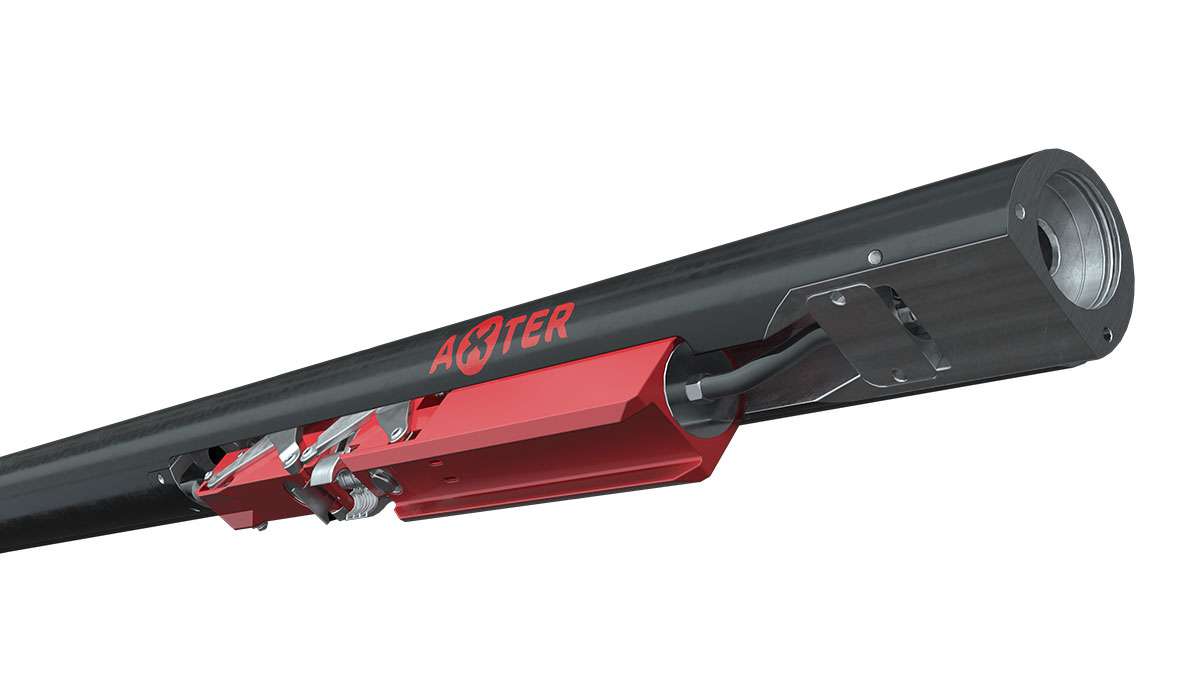

Extracts microtubes from a wellbore

The Axter in RETRIEVE mode is set to locate microtube(s) externally on the tubing string, get annular access to, and finally retrieve the microtube(s) over a certain length to enable displacing cement into the tubing/production casing annulus. All with the intention of creating a cross-sectional barrier without any conduits/leak paths through the plug.

Technical

Outer Diameter3.425” (87 mm)
Maximum Makeup Length700” (17 800 mm)
Maximum Working Pressure5.000 PSI (345 bar)
Maximum Temperature257°F (125°C)
Tubing Size4-½”
CableMono-conductor
